The Pad

The pad at pad.methodsketch.app is where you write a sketch and see the diagrams. This page describes each part of the pad. For step by step help, refer to the Tutorial and the How-to guides.

Sketch list

Sketches shows your sketches, with a preview and the date of the last change.

Control	Action
Create New	Make a sketch that contains StaticAspect { ApiClient }. The sketch name is the date and time
Switch organisation	Show the sketches of an organisation. private shows your own

Top bar

Control	Action
←	Go back to the sketch list
Iterate	Draw the diagrams and save the sketch as a new version
Name box	The sketch name. The next iterate saves the name
Editor	The Editor menu
Tasks	The Tasks menu

Ctrl+S also iterates, from all parts of the page. The pad iterates by itself when the sketch opens, after Update Sketch, and after you accept changes from an agent.

If an iterate fails, the pad keeps the last diagrams and shows the error below the top bar.

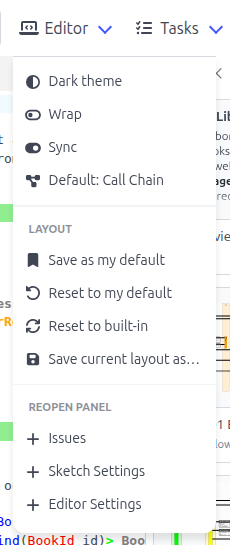

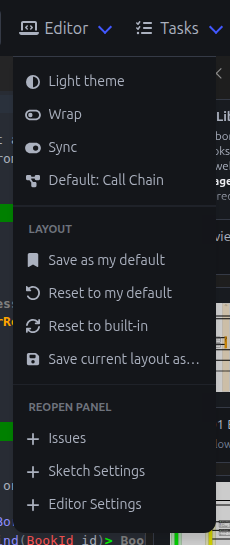

Editor menu

Item	Action
Dark theme / Light theme	Change the theme
Wrap	Wrap long lines in the editor
Sync	Keep the editor and the panels on the same item. The diagram follows the caret, and the caret follows the selected diagram
Default: Call Chain	The diagram that a use case opens as. Click to change to Sequence, then DTO Flow
Save as my default	Keep this layout as your default
Reset to my default	Go back to your default layout
Reset to built-in	Go back to the first layout of the pad
Save current layout as…	Save the layout with a name
Saved layouts	Apply a saved layout. × deletes the layout
Reopen panel	Open a closed panel, or Issues, Sketch Settings or Editor Settings

Your browser keeps the layouts. A saved layout works in all sketches.

Tasks menu

Item	Action
Generate	Open the Generate dialog
History	List the earlier versions of the sketch
Edit most recent	Go back to the latest version from an earlier one
Project Design	Make the project plan
Export Images	Download all diagrams in a zip file
Delete	Delete the sketch

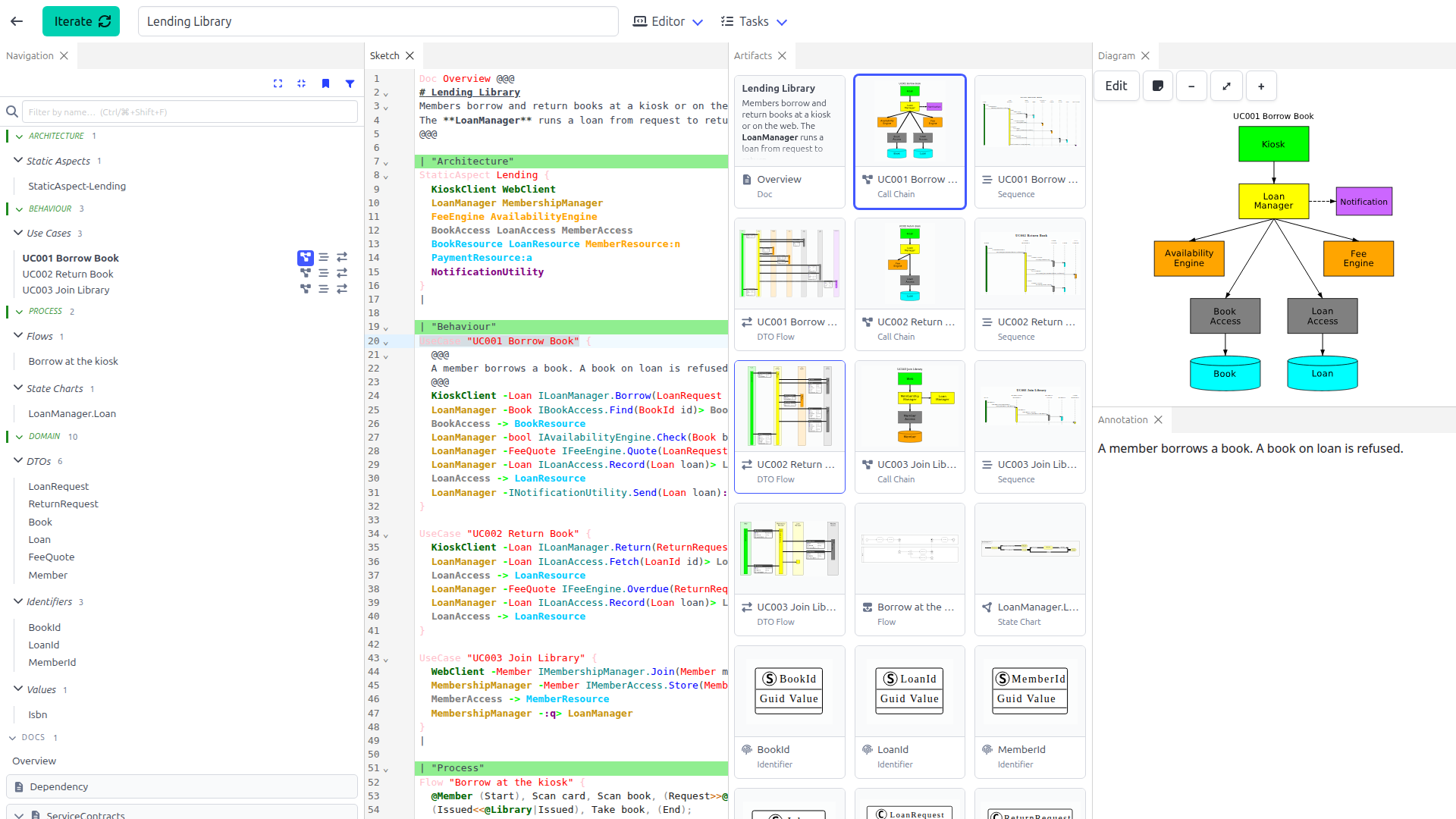

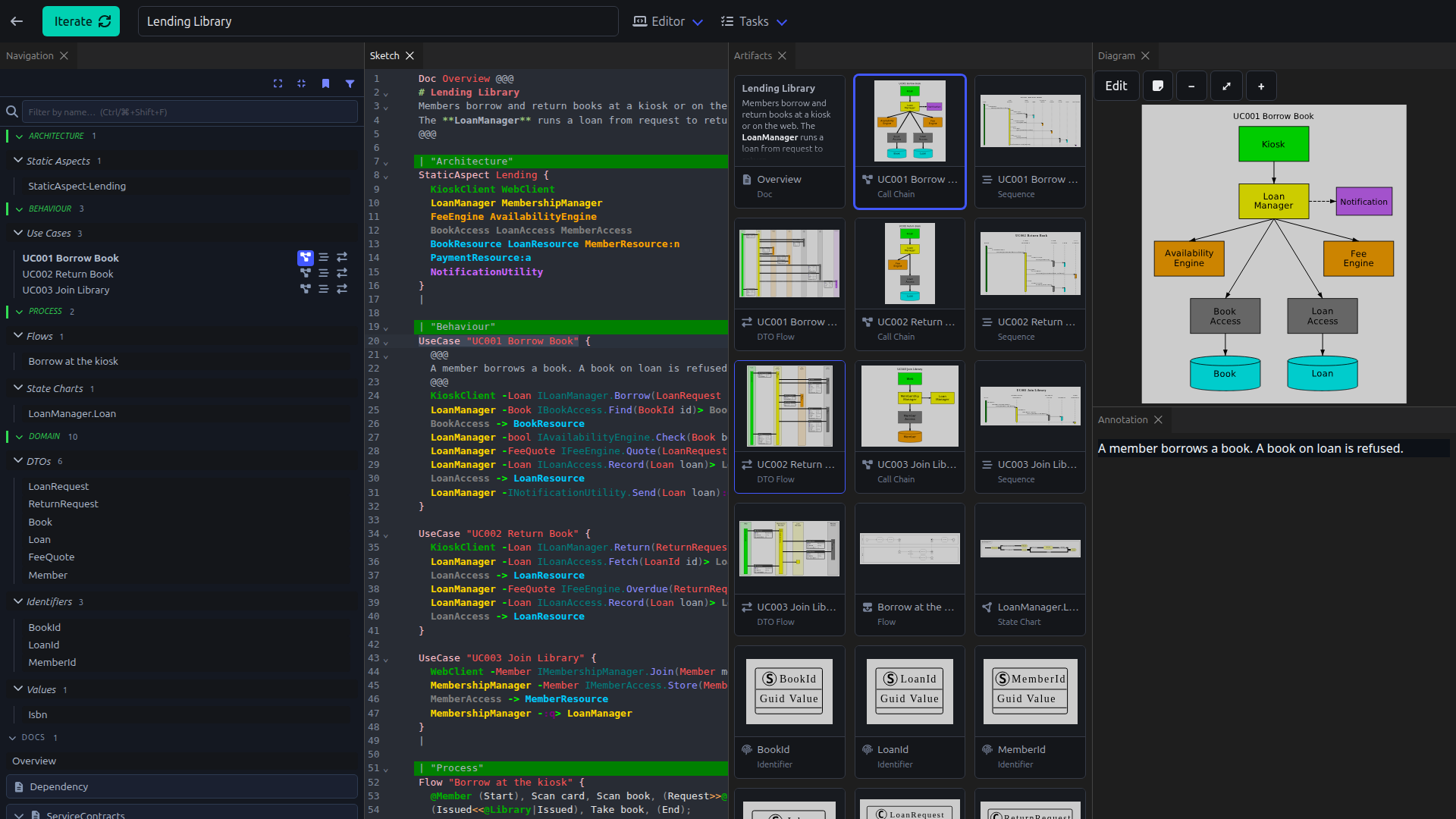

Panels

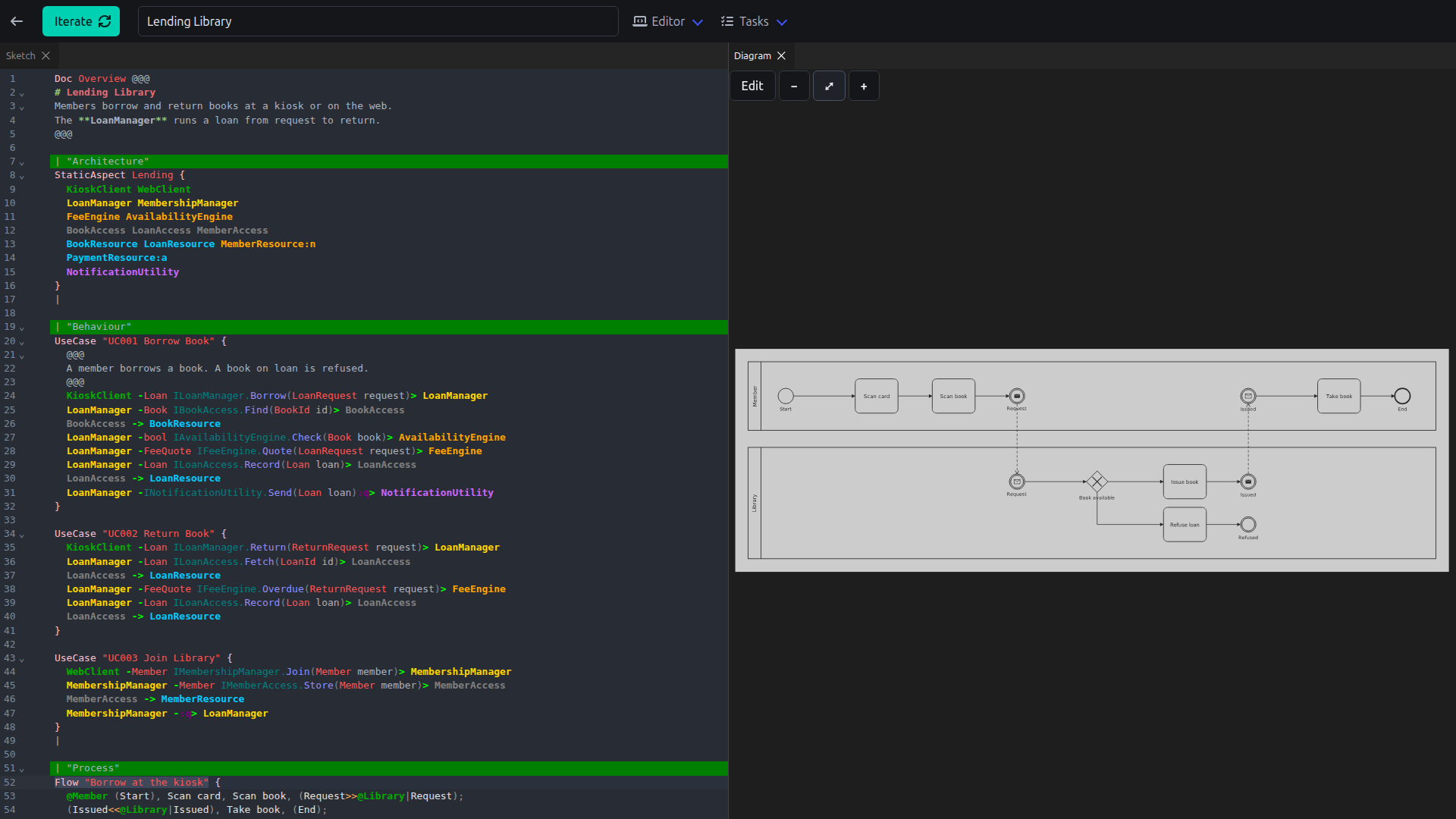

The pad starts with Navigation, Sketch, Artifacts, Static Aspects and Diagram. Drag a tab to move a panel. On a narrow screen the panels show as tabs.

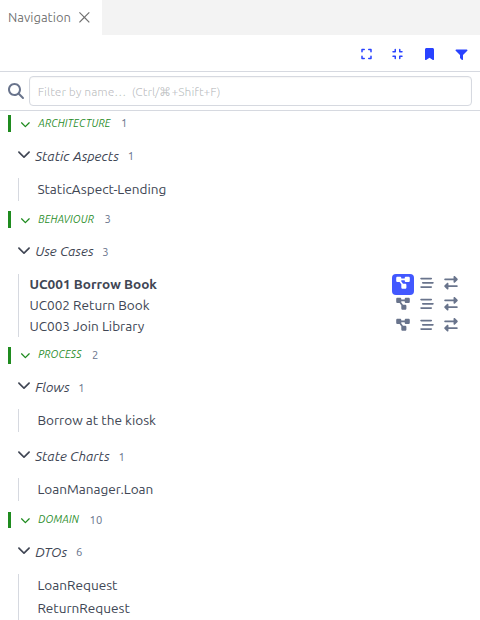

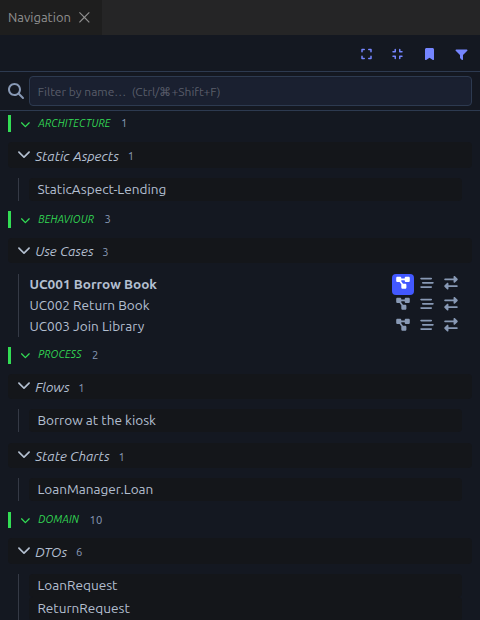

Navigation

A tree of all items in the sketch, with a group for each type: Static Aspects, Use Cases, DTOs, Identifiers, Values, Flows, Statecharts and Docs. Dependency, Service Contracts and Data Contracts come after the groups. If the sketch has sections, each section is a group with the type groups in it.

Control	Action
Expand all / Collapse all	Open or close all groups
Bookmark	Show only the items with a bookmark
Filter	Select the types and the sections to show
Filter by name	Find an item by part of the item name. u3a finds UC Memb-03a. Ctrl+Shift+F moves to this box

A use case has a button for each use case diagram: call chain, sequence and DTO flow. The first button is the default view. Under Service Contracts, each interface has a row that opens the interface contract.

Sketch

The editor. Refer to the Editor page.

Artifacts

A card with a small image for each diagram.

Static Aspects

All static aspects, one below the other.

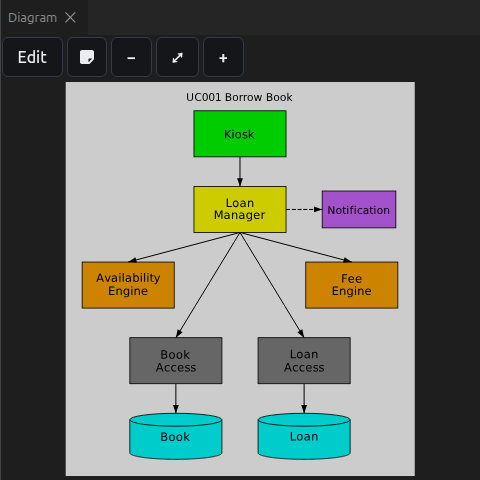

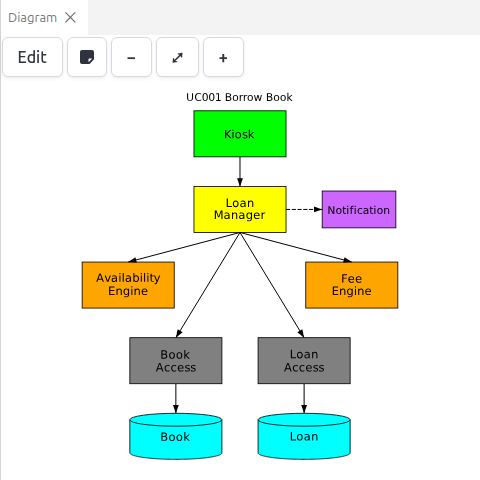

Diagram

The selected diagram.

Control	Action
Edit	Move the items in a static aspect, call chain or flow
Note	Open the annotation in a separate tab
− / +	Zoom out and zoom in
⤢	Fit the diagram to the panel

The mouse wheel zooms and a drag moves the diagram. On a touch screen, pinch to zoom. The diagram fits the panel until you zoom or move the diagram.

Annotation

The Markdown of the selected item. The panel opens when the item has an annotation and closes when the item has no annotation. The call chain, sequence and DTO flow of a use case share one annotation.

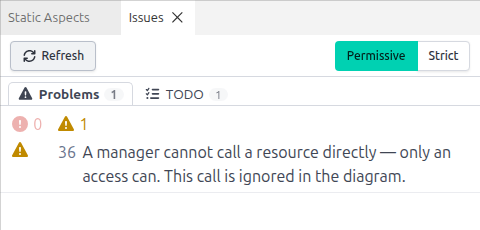

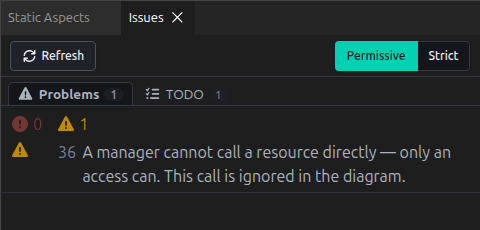

Issues

The problems and the tags in the sketch. A click on a problem moves the editor to the line of the problem.

Control	Action
Permissive	Show syntax errors, undefined components and mixed value and reference types
Strict	Also show each DTO property, request type and response type that has no definition
Refresh	Check the sketch again and read the tags

A tag is a word of two or more capital letters and a colon, for example TODO:, in a comment or in Markdown. Each tag has a tab. The panel reads tags when you click Refresh and when you iterate.

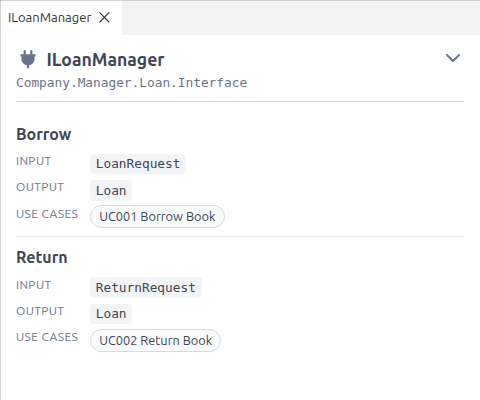

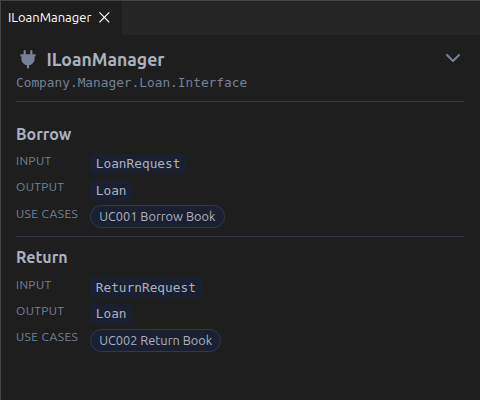

Service contract

One interface, with each operation, the input and output of the operation, and the use cases that call the operation. The chevron shows each operation on one line. A click on a type opens the type diagram. A click on a use case opens the use case.

Sketch Settings and Editor Settings

Refer to Sketch Settings and Editor Settings.

Clicks and tabs

Action	Result
Click an item, a card or a diagram button	The diagram shows in the Diagram panel
Double click a diagram button of a use case	The diagram opens in a separate tab
Click Note in the Diagram panel	The annotation opens in a separate tab
Click an interface	The contract opens in a separate tab

If a diagram has a separate tab, a click shows that tab. If the Diagram panel is closed, a click opens the Diagram panel. These tabs stay open until you close the tabs. Layouts do not keep these tabs.

Diagrams

Diagram	From	Shows
Static Aspect	StaticAspect	Each component in its layer
Call Chain	UseCase	The components of the use case and the calls between the components
Sequence	UseCase	The calls in order, with the operation of each call

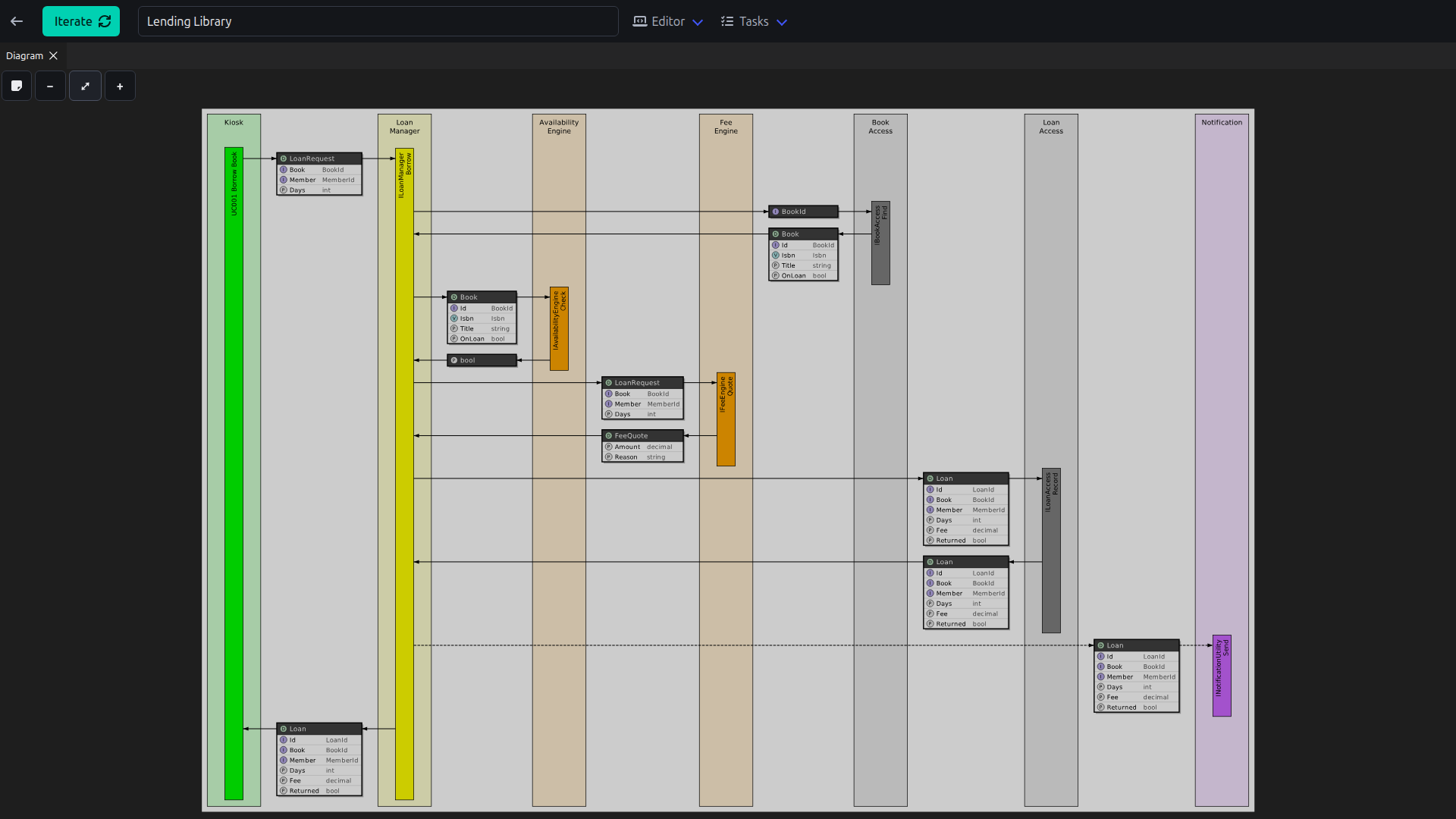

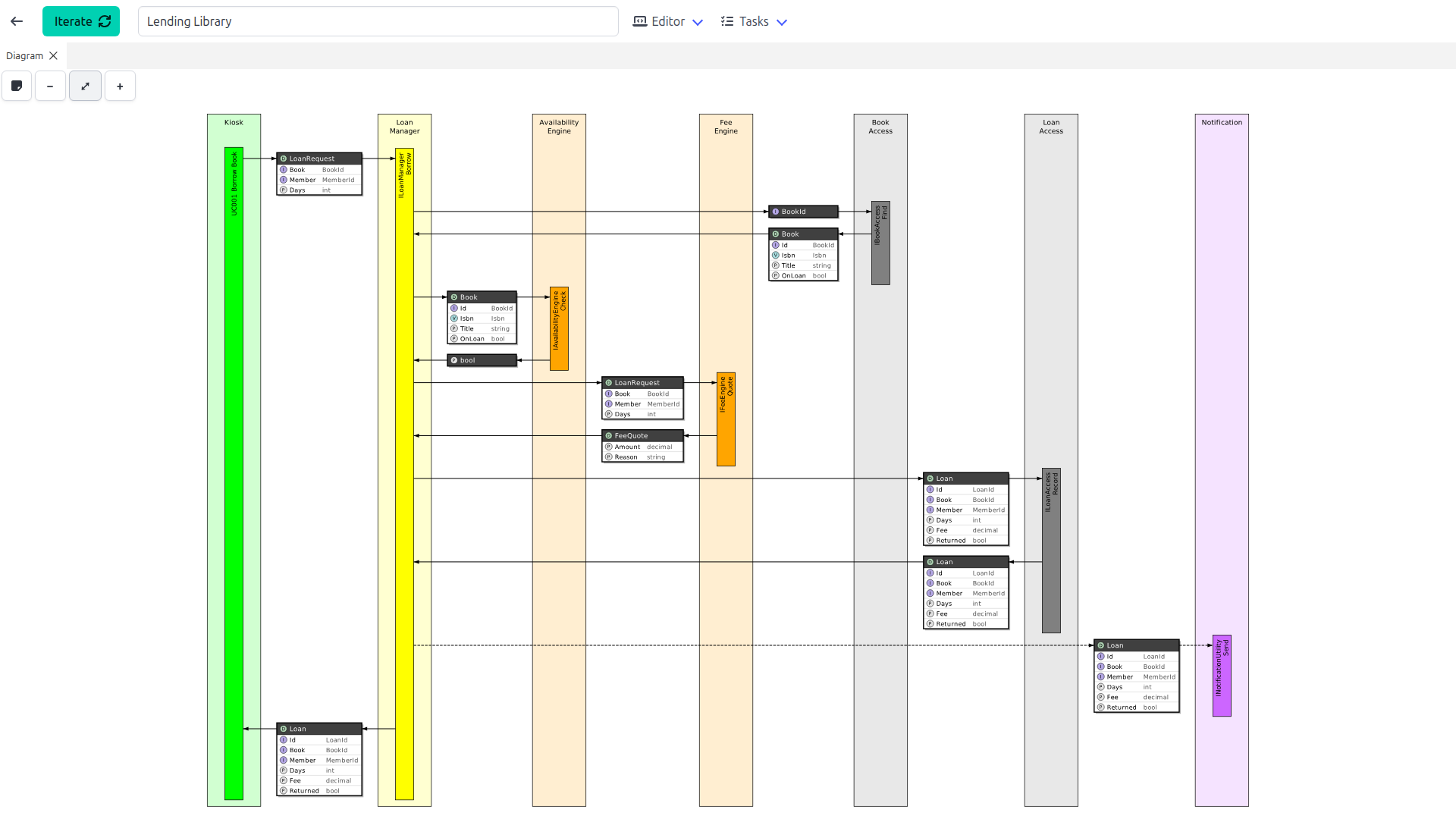

DTO Flow	UseCase with call detail	The DTO on each call, with the DTO properties
Dependency	All use cases	Which component depends on which
DTO, Identifier, Value	DTO, Identifier, Value	The type and the type properties
Service Contracts	Call detail	The interfaces and the operations of each interface
Data Contracts	Call detail and DTOs	The DTOs of each contract
Flow	Flow	A BPMN process with lanes
Statechart	StateChart	The states, transitions and raises of a chart
Activity	Activity	A PlantUML activity diagram
Doc	Doc	Markdown

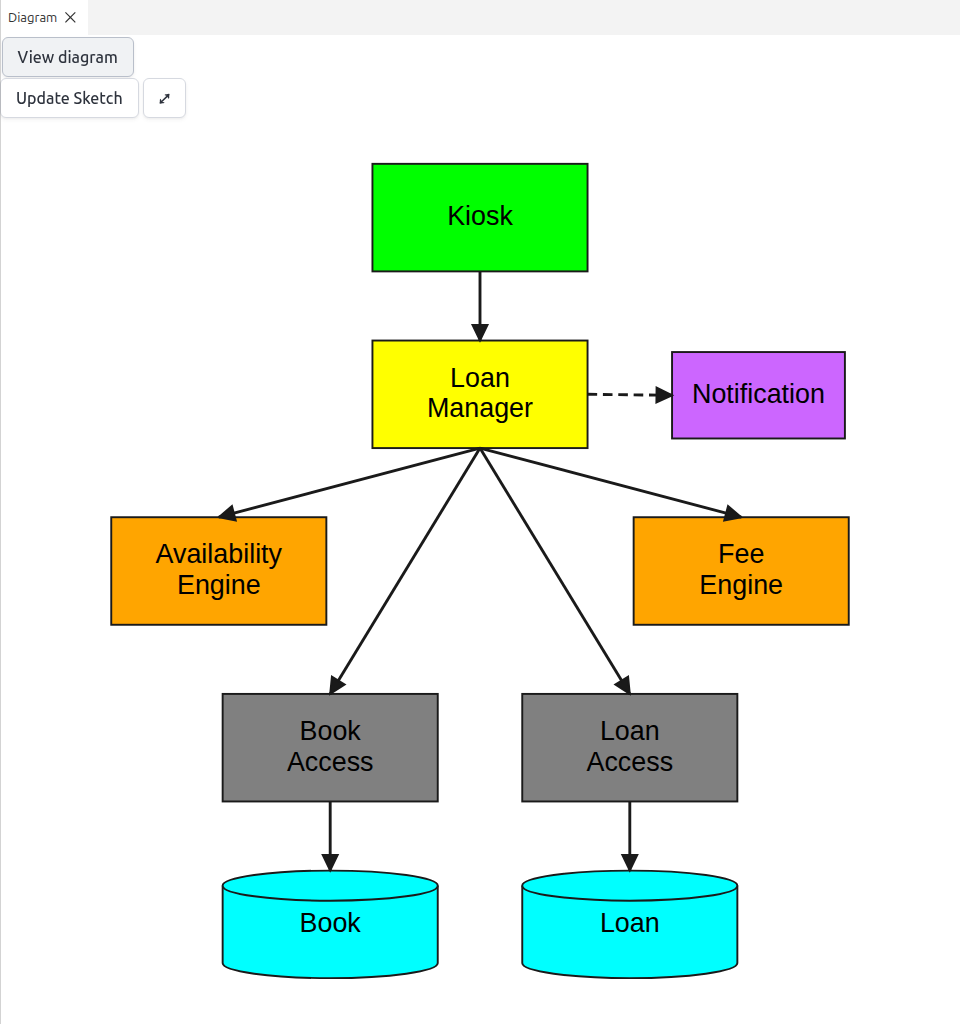

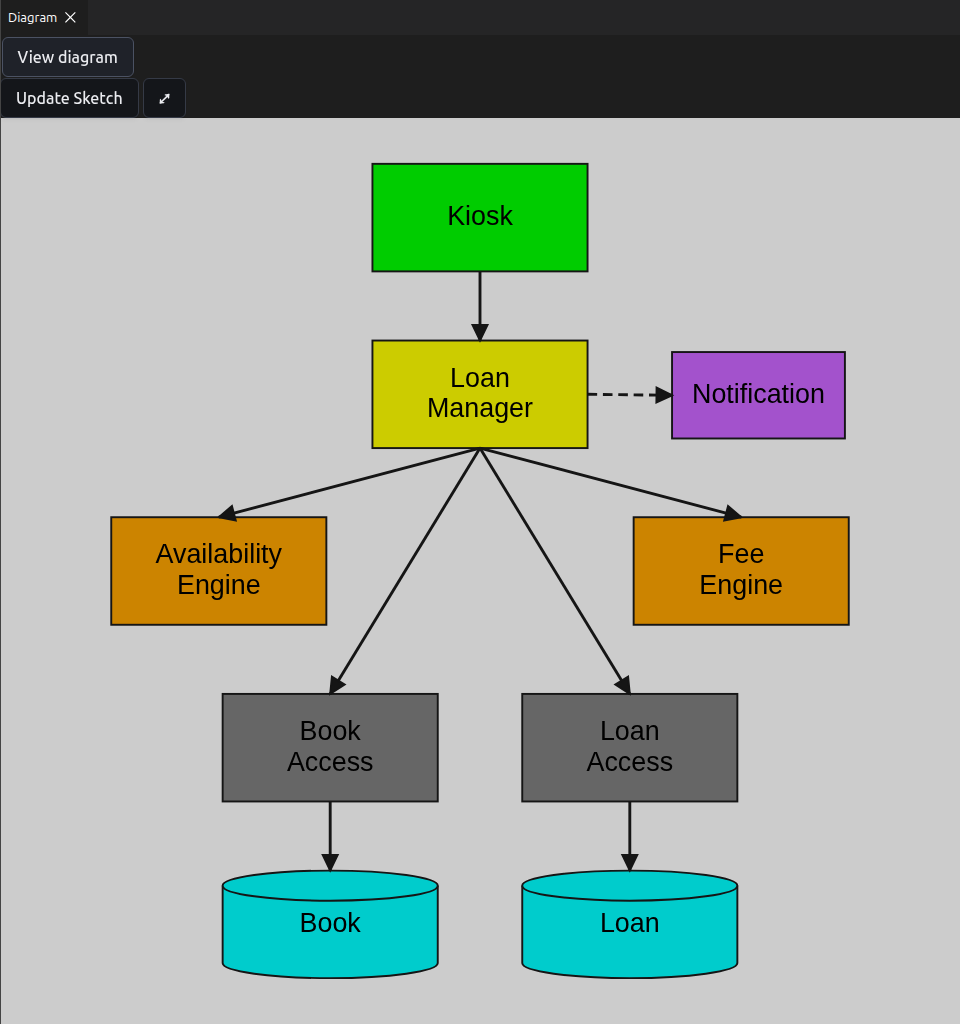

Diagram editing

Edit is in the Diagram panel for static aspects, call chains and flows. View diagram goes back to the image.

• In a static aspect or a call chain, you can move boxes. A moved box aligns with the other boxes, and the arrows follow.

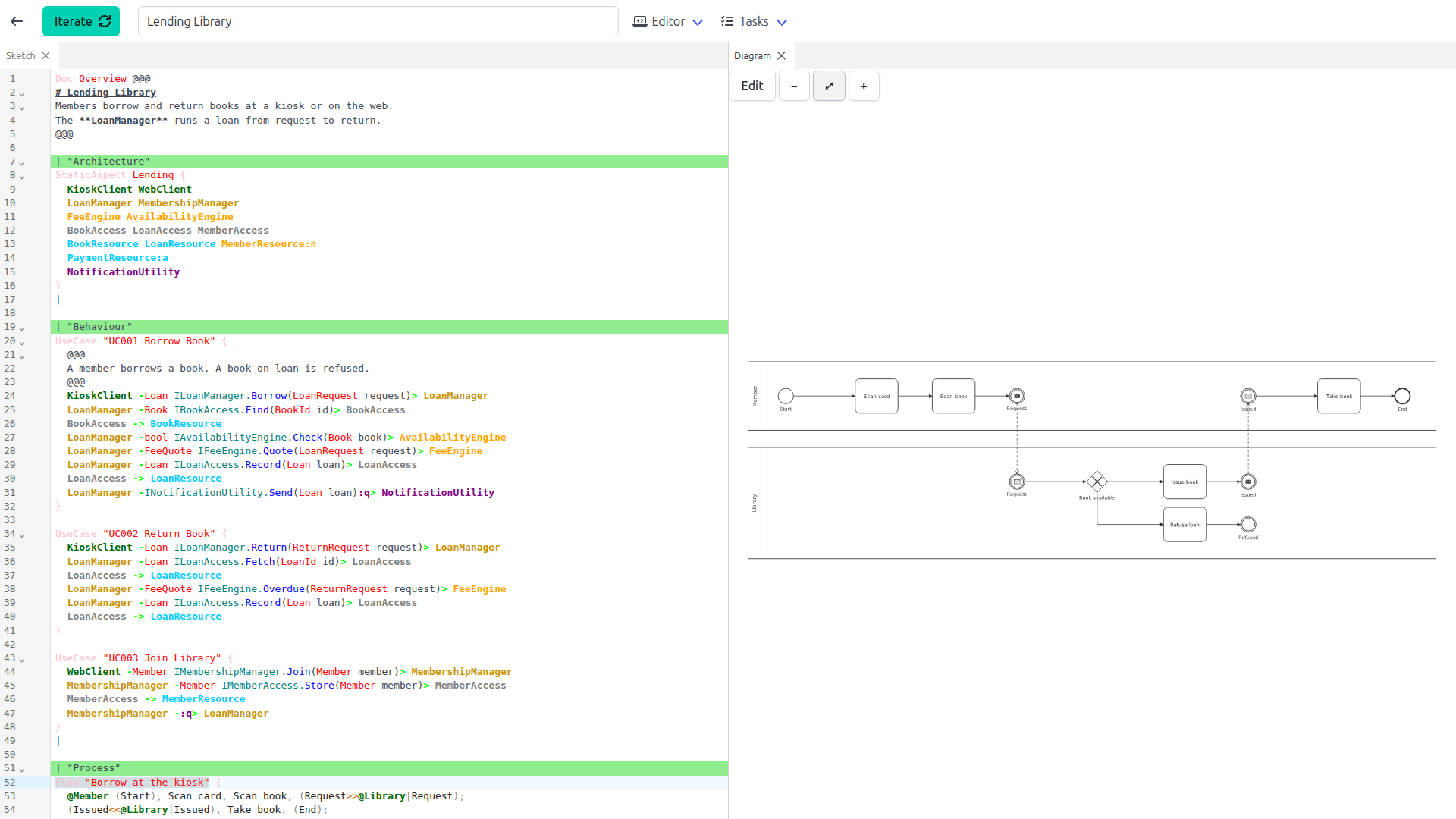

• In a flow, you can move steps, change the size of a lane and change the route of an arrow. The toolbar adds a start event, a message send, a message receive, an end event, a gateway, a task or a lane.

Update Sketch writes the changes to the sketch, then iterates. The pad keeps only the positions that are different from the automatic layout, in a folded [v1 …] block after the closing }. For a flow, Update Sketch also writes the steps.

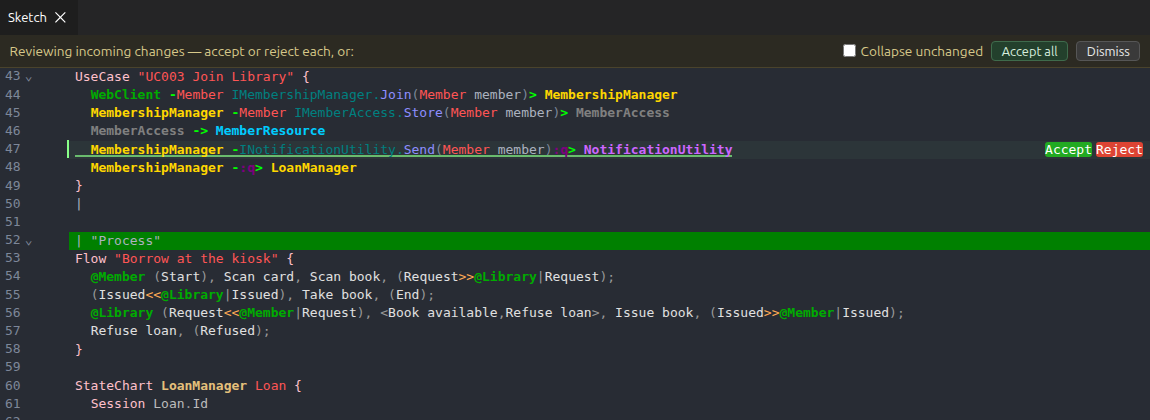

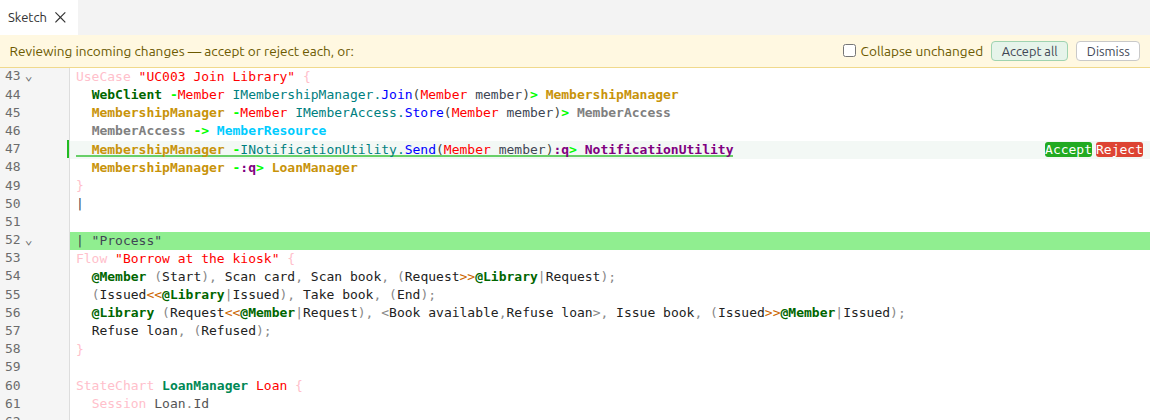

Live updates

When an agent on MCP or another browser tab changes the sketch, the editor shows the changes in place. Added lines have a highlight. Removed lines show as blocks between the lines.

Control	Action
Accept / Reject	Keep or remove one change
Accept all	Keep all changes
Dismiss	Go back to your text
Collapse unchanged	Hide the lines with no change

The pad iterates when no changes are left. If you have edits that you did not iterate, the pad shows a banner with Load latest instead.

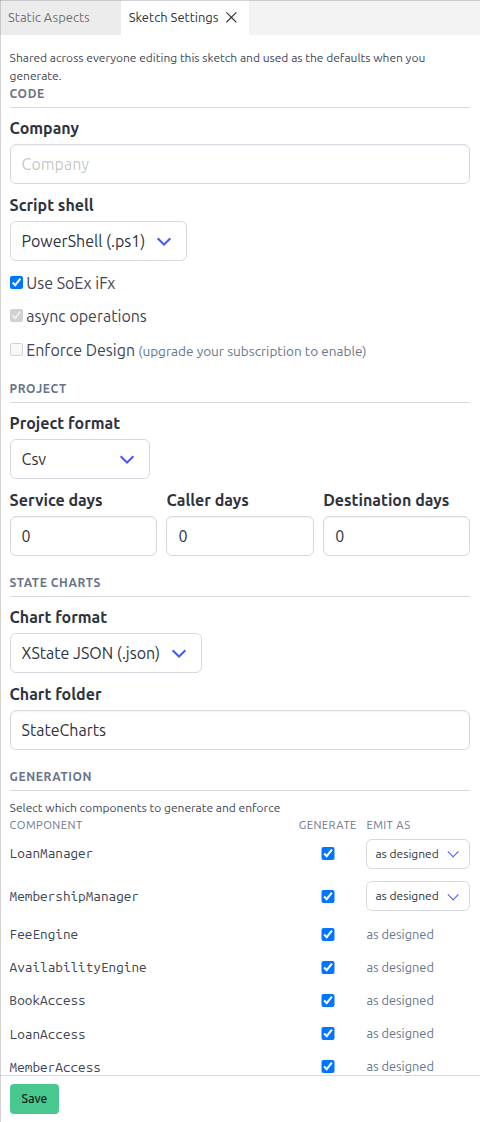

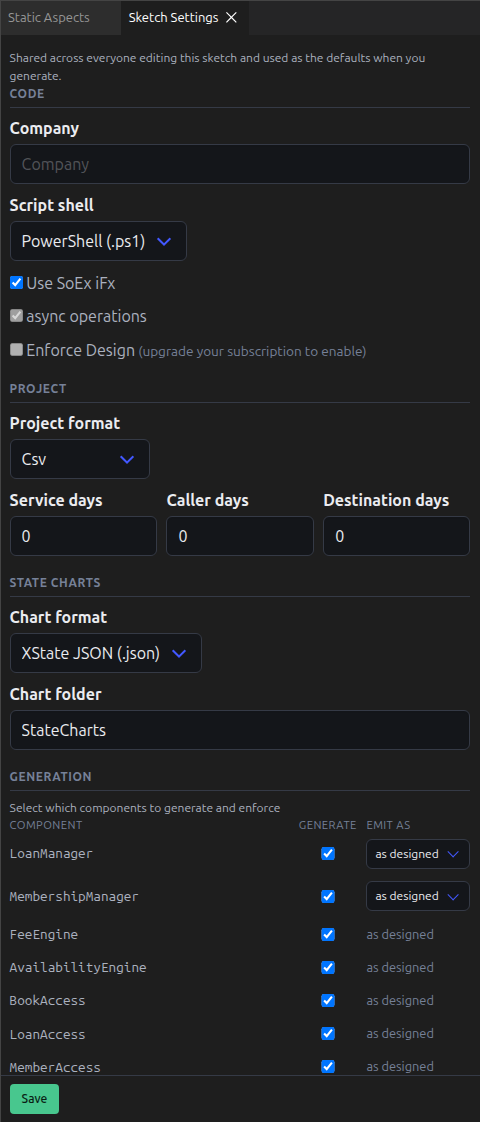

Sketch Settings

Open from Editor ▸ Reopen panel. The settings are part of the sketch, so all editors of the sketch share the settings. Save keeps a change.

Setting	Effect
Company	The root namespace and the solution name
Script shell	PowerShell (.ps1) or BourneShell (.sh)
Use SoEx iFx	Use the SoEx in-process host. Use SoEx iFx also sets async operations
async operations	Operations return Task
Enforce Design	Add modelanalyzer.json and the analyzer to the projects. Only when your subscription includes Enforce Design
Project format	Csv or Project Plan, for Tasks ▸ Project Design
Service days	The days for each service in the project plan
Caller days	The days to add to the caller for each dependency
Destination days	The days to add to the destination for each dependency
Chart format	XState JSON (.json) or SCXML (.scxml)
Chart folder	The folder for statecharts in the service project. The default is StateCharts

Generation

A row for each manager, engine, access and utility.

Column	Effect
Generate	Make the projects for the component. On by default for managers, engines and accesses
Emit as	For a manager, Utility makes the manager as a utility

A row tagged "no effect" names a component that is no longer in the sketch. Remove deletes the row. The diagrams always show a component as you designed it.

Diagram styling

Applies to the call chain, static aspect and dependency diagrams. Classic uses the standard colours. Custom sets rounded boxes, the line thickness, the border thickness, and a colour for each component type and each resource type.

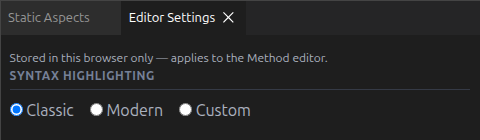

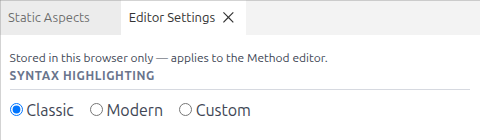

Editor Settings

Open from Editor ▸ Reopen panel. The syntax colours are Classic, Modern or Custom. Custom takes a JSON theme for light and for dark. Your browser keeps the syntax colours.

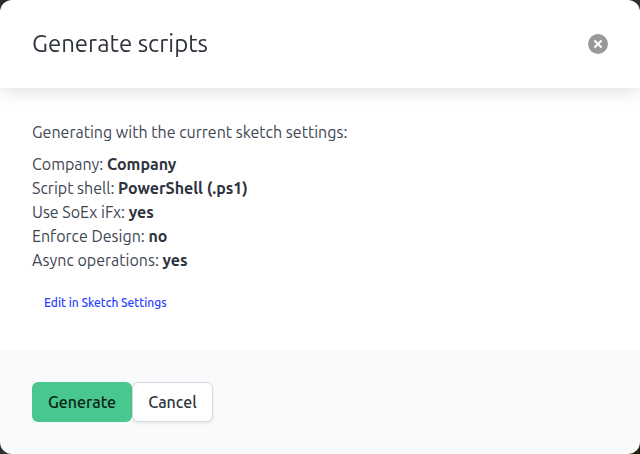

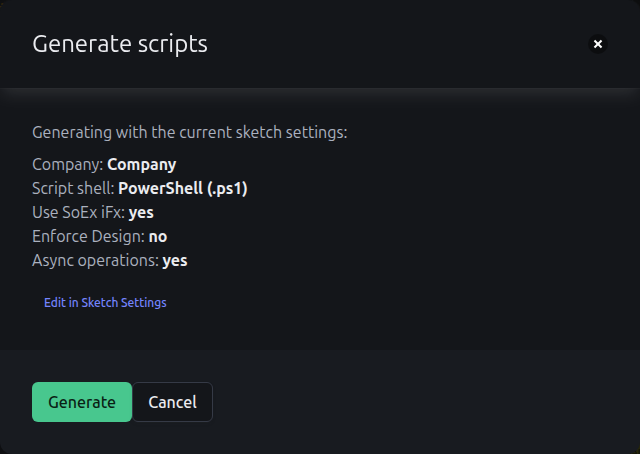

Generate dialog

Tasks ▸ Generate shows the settings that the script will use: Company, Script shell, Use SoEx iFx, Enforce Design, async operations, and the chart format and folder if the sketch has statecharts. Edit in Sketch Settings opens the settings. Generate makes the script and shows links to download it. Refer to Generate the solution.

History

Every iterate saves a version. Tasks ▸ History lists the versions, 50 at a time. A version opens read-only. Tasks ▸ Edit most recent goes back to the latest.

Keyboard

Keys	Action
Ctrl+S	Iterate
Ctrl+Shift+F	Filter the navigation by name
Ctrl+Shift+M	Show the problems below the editor
Ctrl+K Ctrl+K	Add or remove a bookmark
Ctrl+K ] / [	Go to the next or previous section

On macOS, use Cmd. The Editor page has all the keys.
